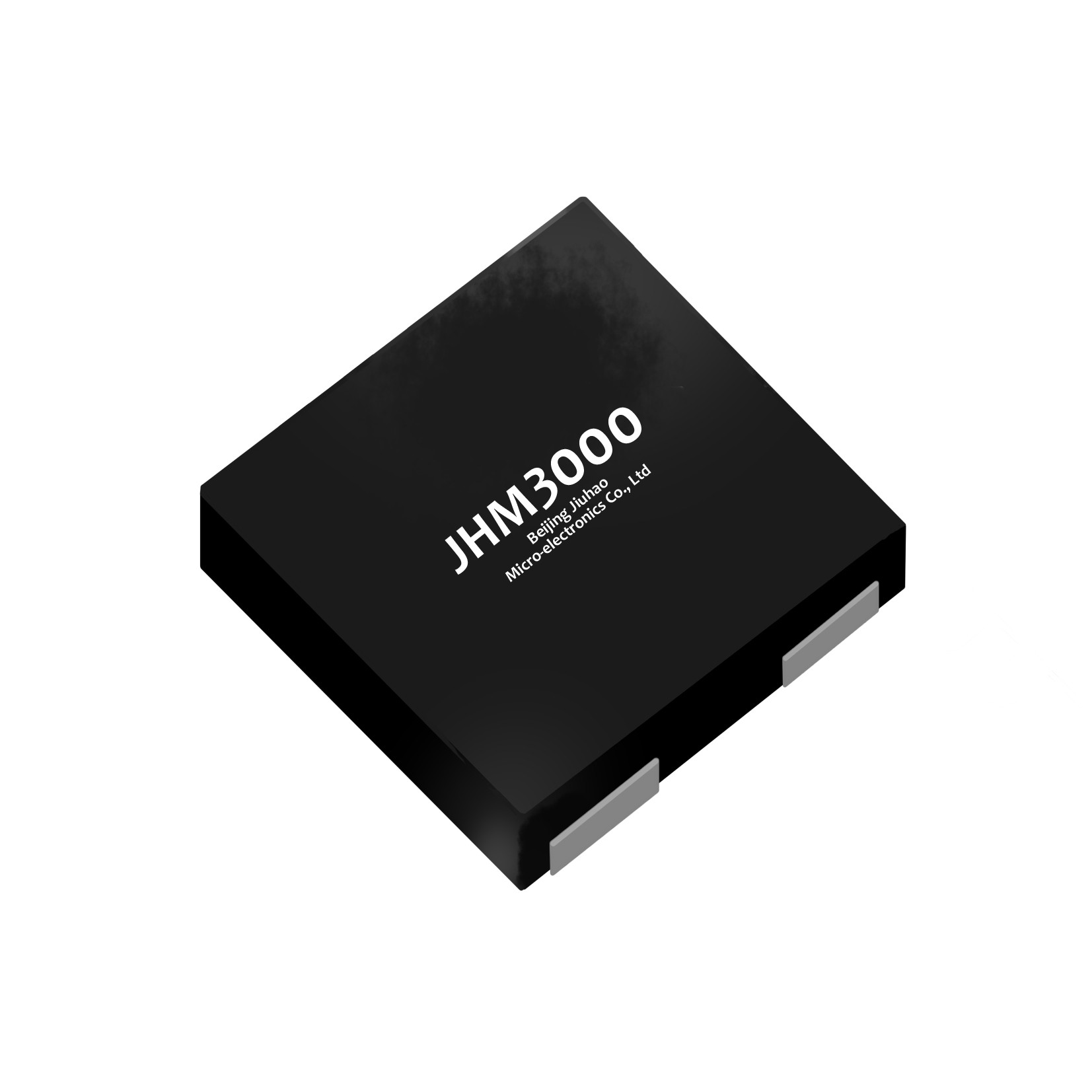

Body Temperature Sensor IC JHM3000
The JHM3000 is a CMOS integrated circuit with signal conditioning for body temperature measurement. The 14-bit ADC is integrated within the chip, and the transmission is efficient by PPM coding.
JHM3000 is a high-resolution temperature sensor IC for human body temperature measurement in an DFN-8 package. Only VDD, VSS and SO pins needs to be connected to external MCU. The 14-bit temperature data with resolution less than 0.01℃ is continuously output via SO pin. JHM3000 can achieve ±0.1 ℃ measurement accuracy in the range of 32℃ ~42℃ after simple calibration.
Features
| Voltage supply | 1.5~3.6V |
| Current consumption during measurement | 150μA |
| Current consumption during data transmission | 20μA |
| Measuring temperature range | 32℃~ 47℃ |
| Recommended temperature measurement range | 32℃~ 42℃ |
| Baud rate of single line communication | 2.5kbps |

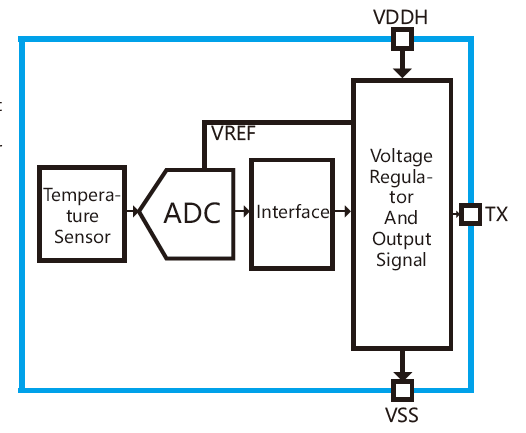

JHM3000 Block Diagram
